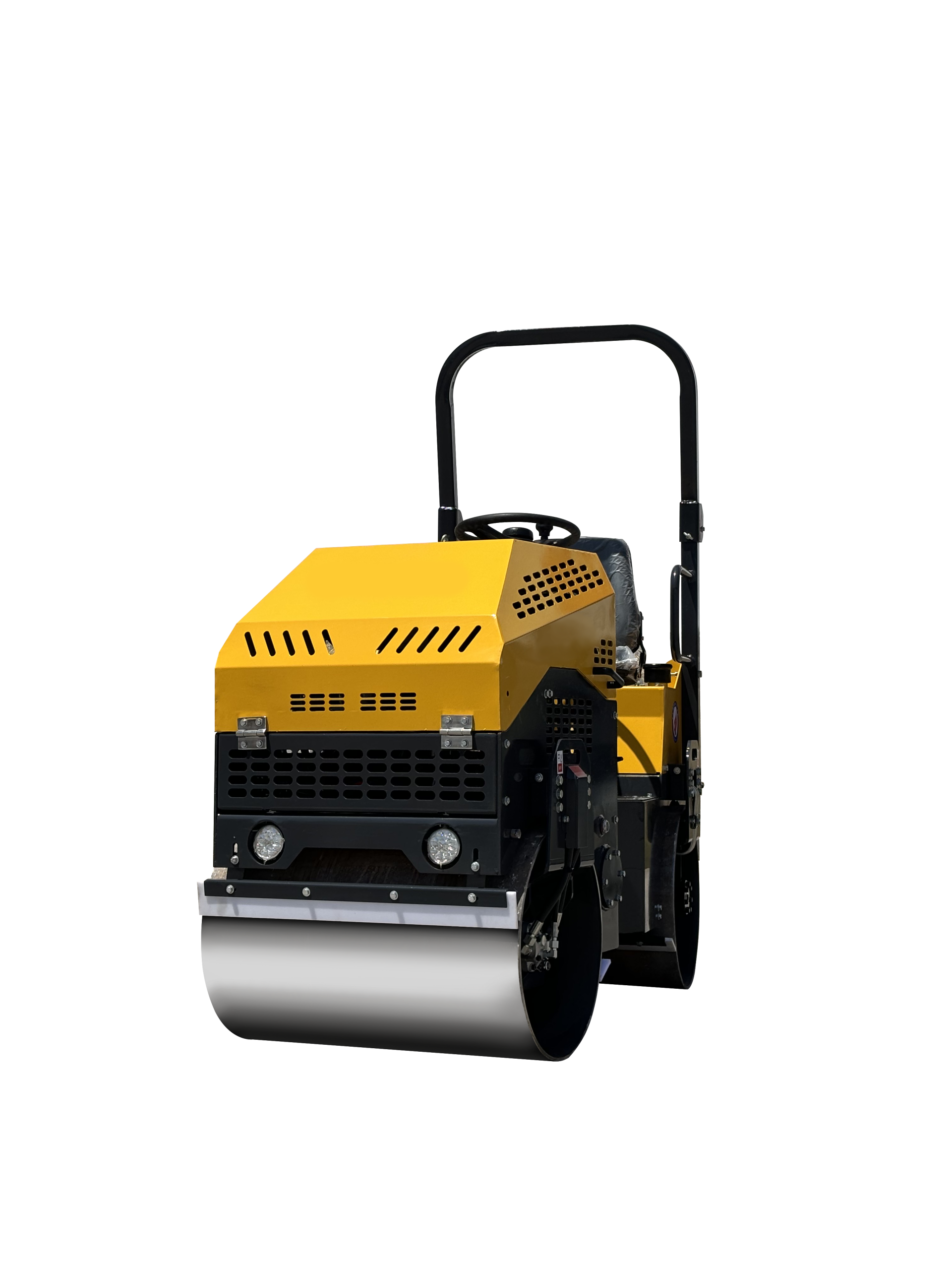

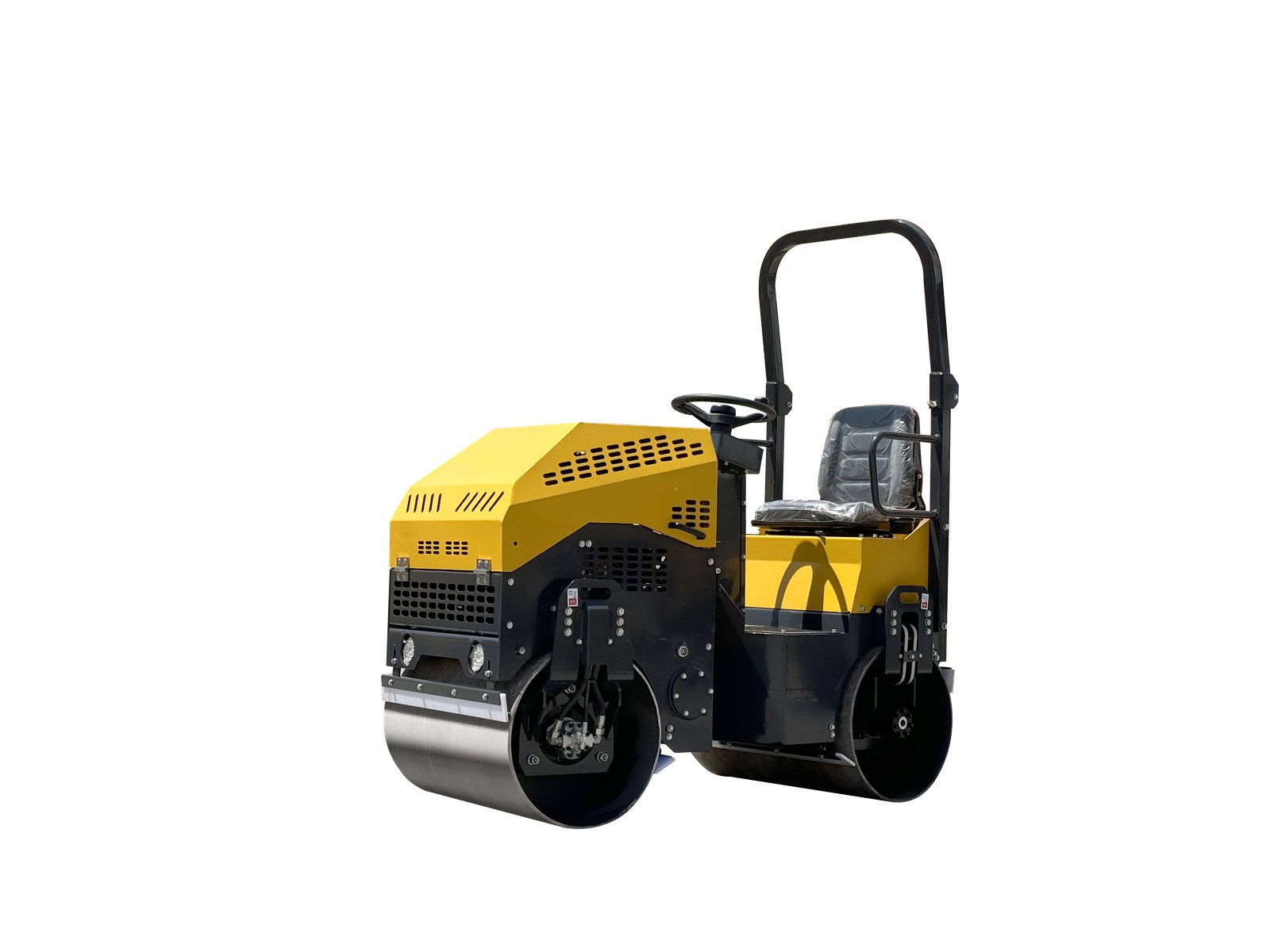

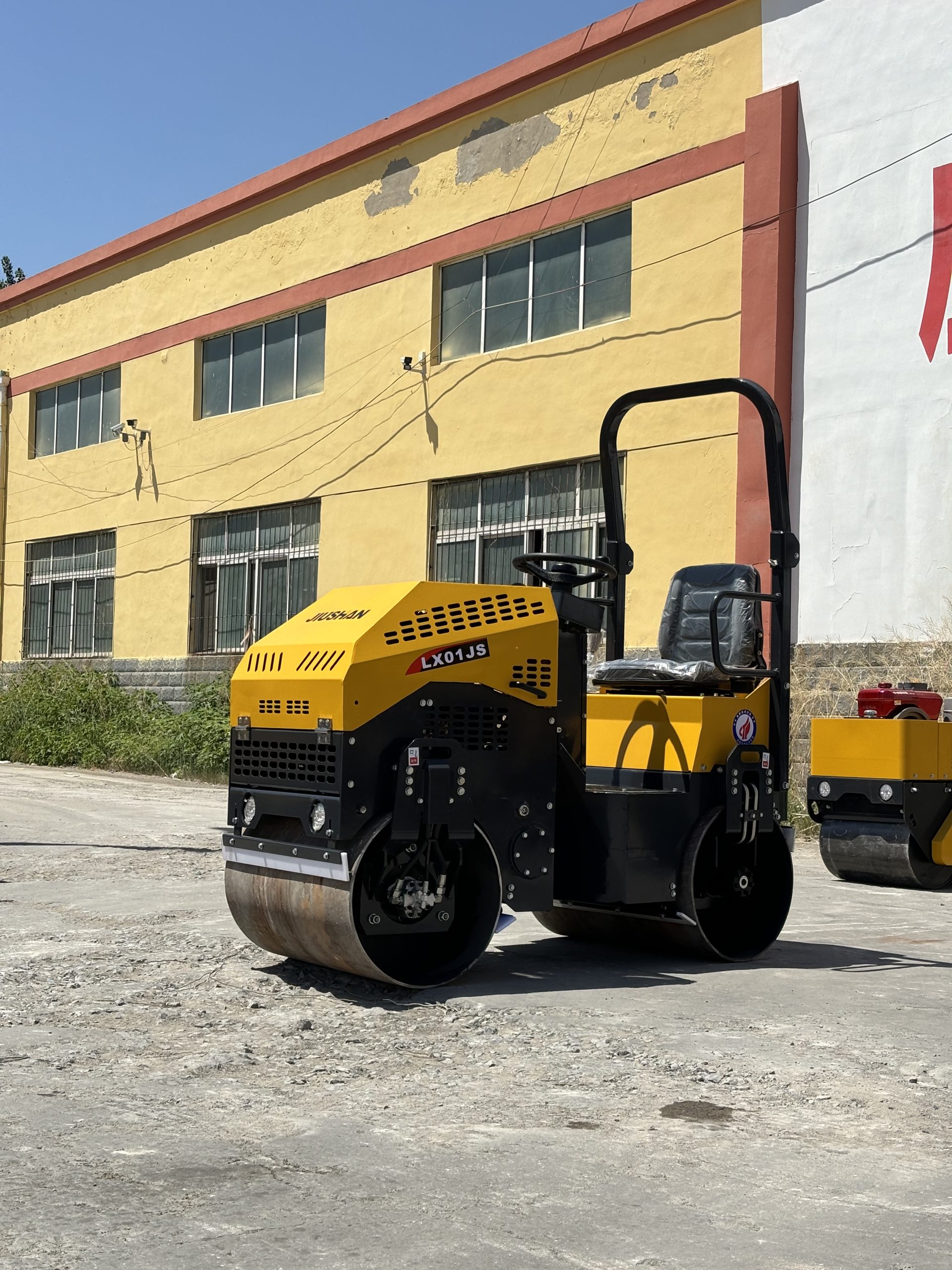

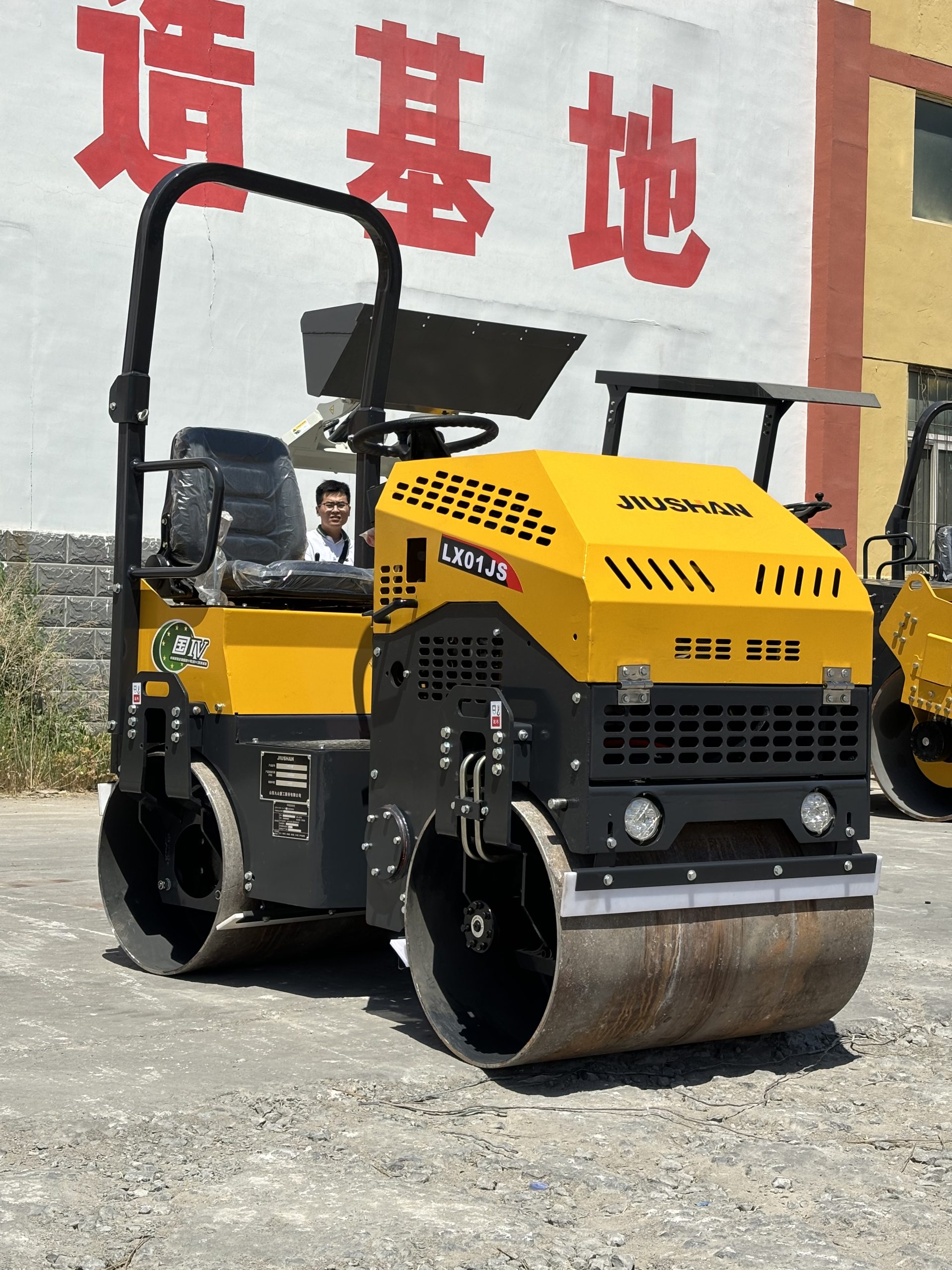

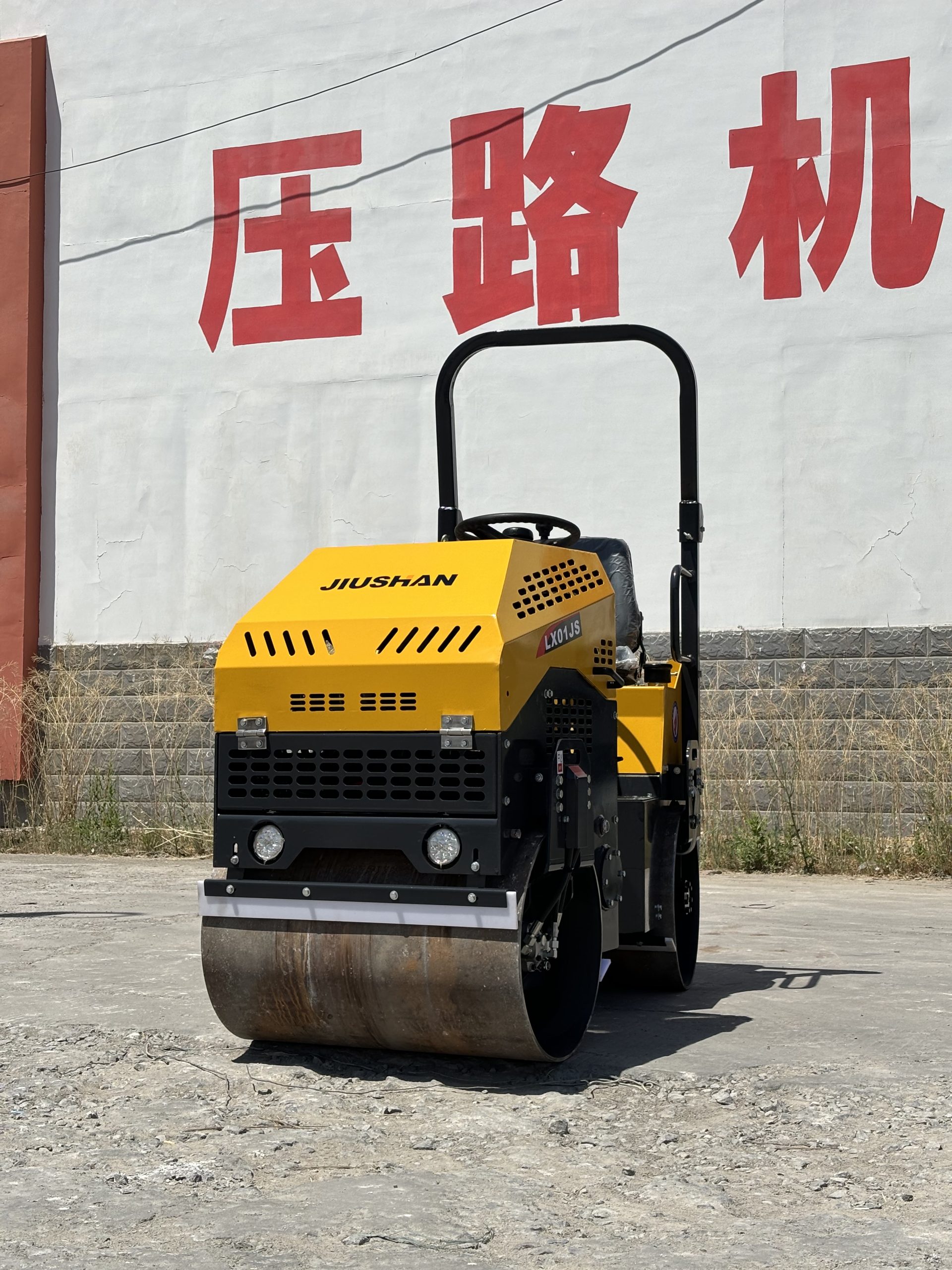

1T Full Hydraulic Double Drum Roller
This 1-ton full-hydraulic vibratory roller combines hydraulic drive and hydraulic vibration for superior control and compaction performance. With higher vibration frequency (72Hz) and greater exciting force (30.5kN), it outperforms comparable products in density and efficiency. Compact design and ergonomic operation make it ideal for confined construction sites.
This 1-ton hydraulic vibratory roller is designed for high-performance compaction in confined areas. With a compact structure and excellent maneuverability, it is well-suited for trench backfilling, road maintenance, and small-zone construction projects.
Key Features
-
Compact Operation: Small operating radius allows efficient work in narrow spaces.
-
High-Pressure Water Spraying System: Provides uniform spray coverage; supports intermittent operation to save water; nozzles can be quickly replaced.
-
Stepless Speed Control: Smooth forward and reverse travel for convenient operation; streamlined and ergonomic handle design ensures comfort and ease of use.
-
Reliable Engine: Powered by a well-known domestic brand with national warranty; international brand options are also available upon request.
-
Superior Hydraulic System: Hydraulic drive and hydraulic vibration deliver better control performance and compaction effect compared to similar products on the market.
Technical Specifications
| Category | Parameter |
|---|---|
| Weight | |
| Operating Weight | 1000 kg |
| Static Line Load | 61 N/cm |
| Maneuverability | |
| Working Speed | 0 – 5 km/h |
| Climbing Ability | 30° |
| Minimum Turning Radius | 2150 mm |
| Minimum Ground Clearance | 205 mm |
| Wheelbase | 1276 mm |
| Capacities | |
| Hydraulic Oil Tank | 23 L |
| Fuel Tank | 5.5 L |
| Water Tank | 53 L |
| Compaction System | |
| Vibration Frequency | 72 Hz |
| Amplitude | 0.7 mm |
| Exciting Force | 30.5 kN |
| Steel Drum Diameter | 530 mm |
| Working Width | 800 mm |
| Vibrating Drum Position | Front |
| Engine | |
| Model | 192FAM |
| Fuel Type | Diesel |
| Rated Power | 8.2 kW (11 hp) |
| Rated Speed | 3600 r/min |
| Number of Cylinders | 1 |
Main Dimensions
| Dimension | Measurement |
|---|---|
| Overall Length (L) | 1930 mm |
| Overall Height (H) | 2090 mm |
| Wheelbase (L2) | 1276 mm |
| Overall Width (W) | 900 mm |
| Working Width (W1) | 800 mm |
| Drum Diameter (D) | 530 mm |
| Ground Clearance (H2) | 205 mm |
Note: Dimensions L1, H1, and S are referenced in the diagram but not specified with numerical values in the source document.
Applications
Ideal for asphalt patching, sidewalks, trenches, municipal maintenance and small construction sites.
Product Support
Contact LUXIN for the current technical data sheet, configuration options and export support.
